Heavy Duty Structure Bearing Liquid Ring Vacuum Pump For Vacuum Drying

Description:

Liquid ring vacuum pumps normally operate with water as the operating medium. An eccentrically installed impeller rotates in the casing partly filled with liquid. By the rotational movement of the impeller and the resulting centrifugal force the liquid within the cylinder forms the so-called liquid ring. Gas is conveyed in the spaces between the single vanes and the liquid ring. Due to the eccentric installation of the impeller the spaces enlarge and the process gas is sucked in through the suction slot. As the impeller further rotates, the spaces are reduced, so that the gas is compressed and discharged through the discharge slot. The vacuum pump can be operated with water recirculation, open or closed loop circuit.

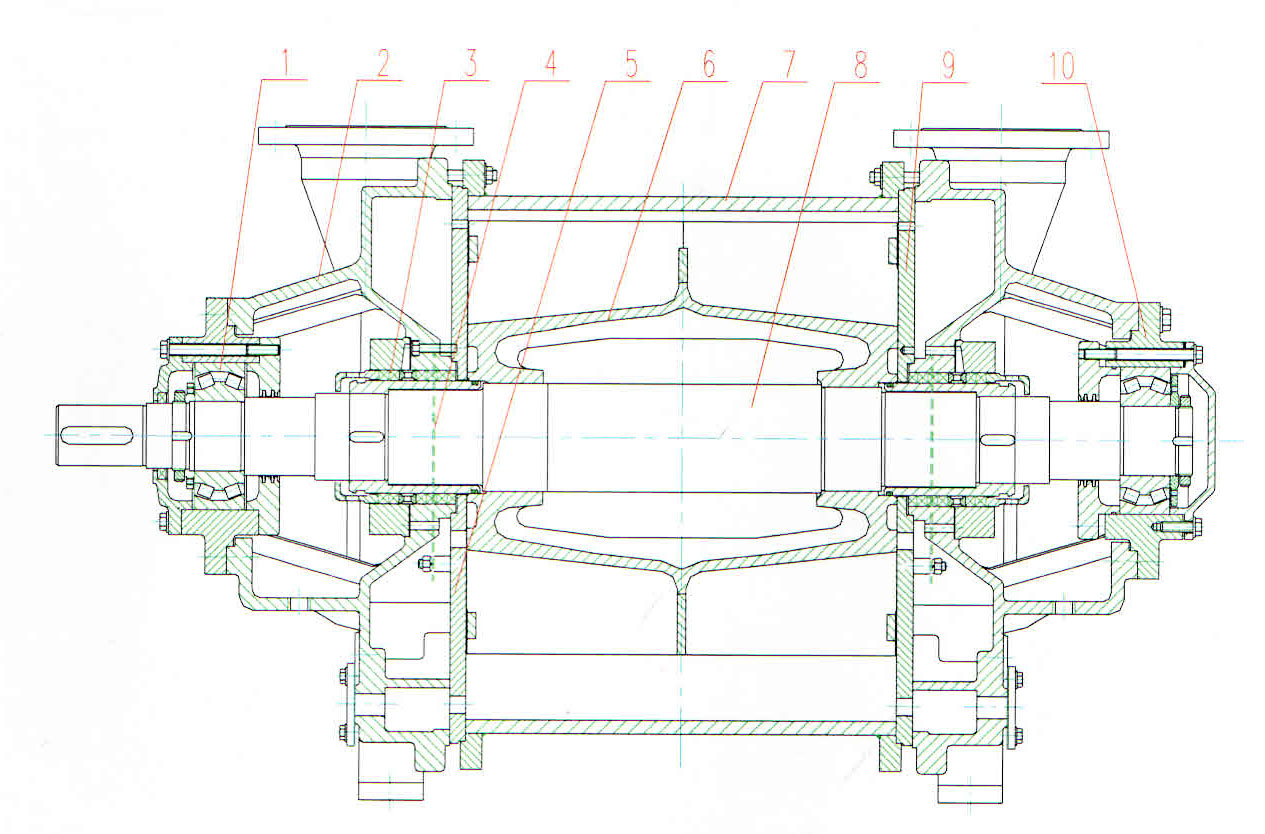

Structure chart:

1. left bearing parts 2. Side cover 3. Shaft sealing parts 4. Disc parts 5. Front plate 6. Impeller 7. Casing 8. Shaft

9. Back plate 10. Right bearing parts

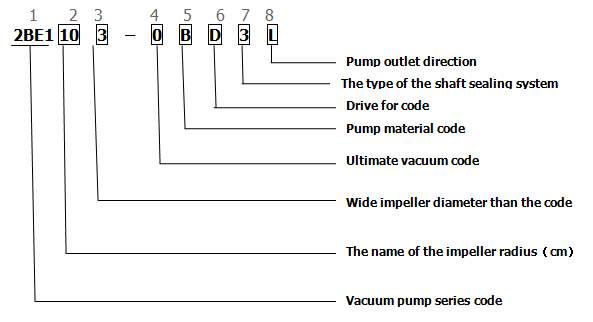

Model code:

Paragon Industrial Corporation is established in 2007, which is located in Hangzhou, Zhejiang China. It is an enterprise consist of paragon industrial Corp., Hangzhou JoHo Imp &Exp Co.Ltd ,Hangzhou Zhenxing pumps factory and Hangzhou Sixin pumps manufactory. The company is mainly engaged in developing and producing non clog centrifugal pump, paper and pulp pumps, refiner, agitator, vacuum pump, chemical pump and so on.

Our pumps are the revised model of Anderitz, So they are good at efficiency, energy-saving, low noise and environmental protection, They are exported to Southeast Asia, like Indonesia and Singapore for more than 8 years.

Our target markets are paper and pulp making industry and chemical processing industrial . Paragon has experienced engineers who can provide the users optimal solutions based on the practical situation.

We also provide Clients with many services, such as complete equipments , installing, maintenance and mountings. We guarantee the Clients with competitive products, timely delivery and satisfied service.
