QJ Mode Paper Pulp Pump Adopts Water Conservancy Model To Get High Efficient

Product instruction:

This type of pulp pump is also called low pulse pump. It is a renewal product to replace the widely used pump whose capacity is large but head is low. Our pump solves the problems: the pulp is not stable and the dismantling is inconvenient.

Features:

1. It adopts optimized water conservancy model and it is corrected by CFD, so the efficiency is high.

2. Precision casting impeller is through the dynamic balance test

3. The impeller adopts subdivision crisscross to minimize the pressure pulse

4. It uses gravity axis, thin oil lubrication to make the service life longer.

5. The pump adopts single-stage double-suction split structure to make maintenance convenient.

Materials:

1. front and back wear-resisting plate: duplex stainless steel

2. pump cover: cast iron, duplex stainless steel

3. shaft: 2Cr13

4. Seal: mechanical seal and packing seal

Application:

Handing of cold or hot, chemically neutral or corrosive, clean liquids/products or liquid containing solid:

Chemical and petroleum industry

Oil refinery

Paper plant and Pulp industry

Sugar industry

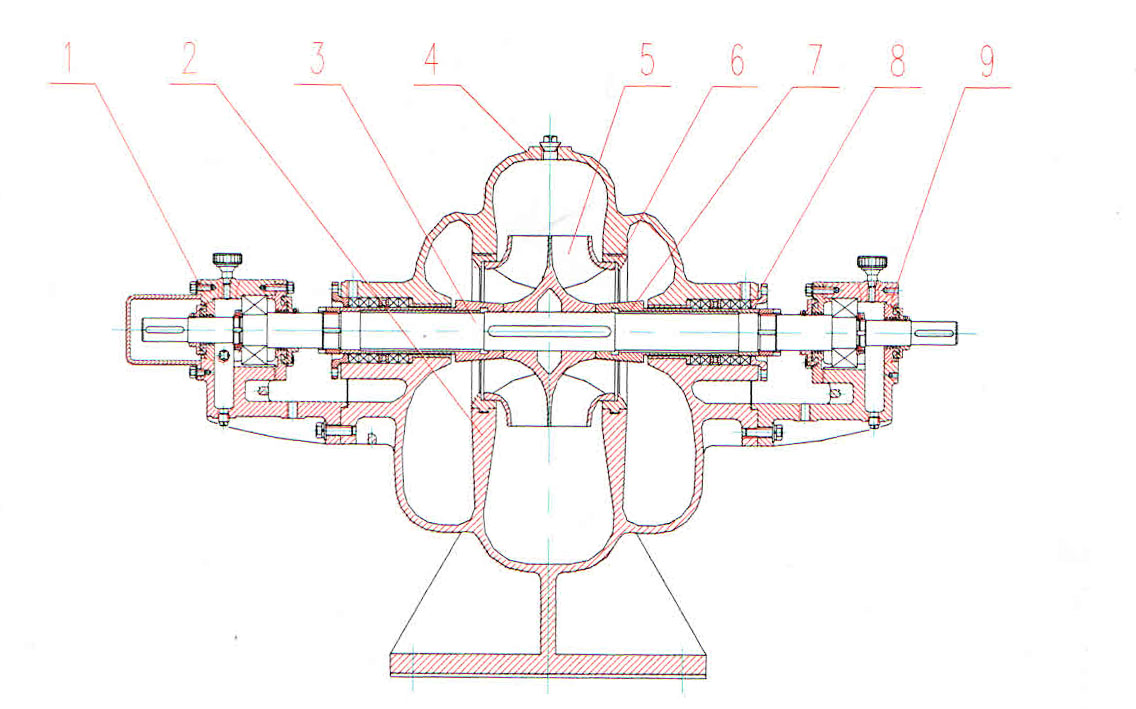

Structure chart:

Paragon Industrial Corporation is established in 2007, which is located in Hangzhou, Zhejiang China. It is an enterprise consist of paragon industrial Corp., Hangzhou JoHo Imp &Exp Co.Ltd ,Hangzhou Zhenxing pumps factory and Hangzhou Sixin pumps manufactory. The company is mainly engaged in developing and producing non clog centrifugal pump, paper and pulp pumps, refiner, agitator, vacuum pump, chemical pump and so on.

Our pumps are the revised model of Anderitz, So they are good at efficiency, energy-saving, low noise and environmental protection, They are exported to Southeast Asia, like Indonesia and Singapore for more than 8 years.

Our target markets are paper and pulp making industry and chemical processing industrial . Paragon has experienced engineers who can provide the users optimal solutions based on the practical situation.

We also provide Clients with many services, such as complete equipments , installing, maintenance and mountings. We guarantee the Clients with competitive products, timely delivery and satisfied service.
