    Piston Self Suction Pump , Low Pressure Centrifugal Water Stainless Steel Pumps

    Piston Self Suction Type Centrifugal Water Pump For House Can Be Customized


    Description:

    The main parts of the pump: pump casing, pump cover, impeller, and shaft, double suction seal ring, shaft sleeve, shaft seal parts, bearing and so on.

    The pump casing and pump cover constitute the work room of the impeller. There are some pipe screw holes on the inlet and outlet flanges which are used to install vacuum gauge and pressure gage; there are some holes on the bottom of the inlet and outlet flanges which are used to draw off the water.


    Application:

    In refineries, petrochemical industry, coal processing and low temperature engineering.

    In chemical industry, fiber and general processing industries, particularly in paper and pulp industries, sugar industry

    In water industry, particularly in seawater desalination plants

    In heating and air-conditioning

    In fossils and nuclear power stations

    In environmental protection engineering

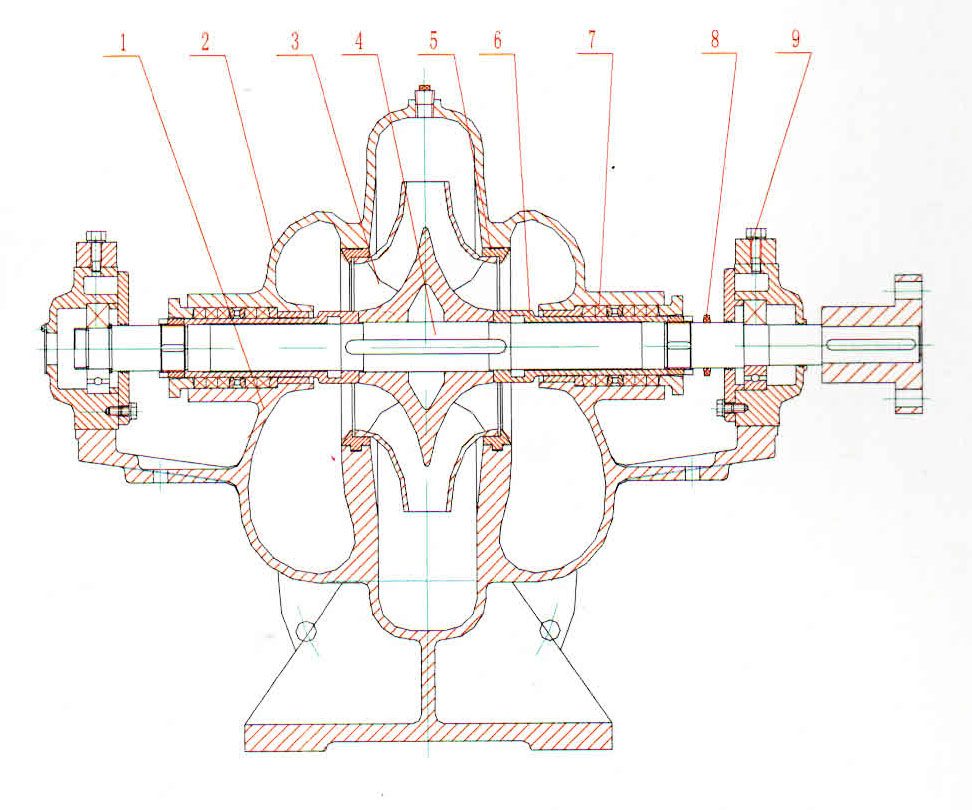

    Structure chart:

    1. Pump casing 2. Pump cover 3. Impeller 4. Shaft 5. Double suction seal ring

    6. Shaft sleeve 7. Shaft seal parts 8. Water deflect 9. Bearing parts
