Single Stage Single Suction Non Clog Centrifugal Pump Open Impeller for Convey Water

Description:

Centrifugal pump with single-stage and single-suction is applicable to industrial and urban water supply, water drainage, agricultural irrigation and drainage. It is used to convey water or other liquid similar to water whose temperature is not higher than 80 ℃. The pump has many merits, such as energy-efficient, low noise, no leakage and reliable performance. If improve this pump, it can convey liquid whose temperature is lower than 150℃.

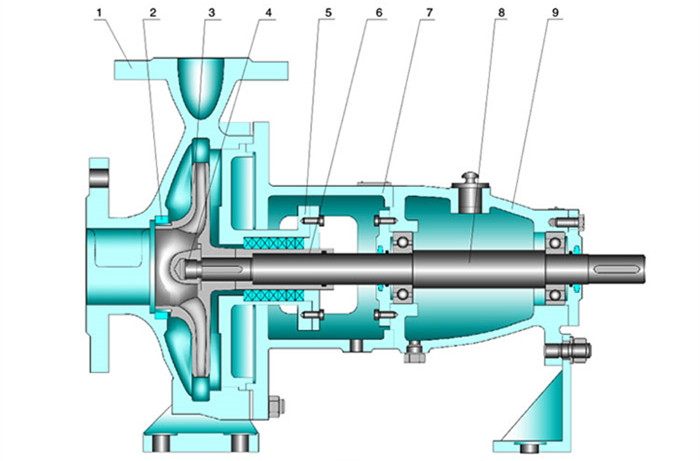

1. Pump casing

2. Impeller

3. Sealing ring

4. Impeller nut

5. Pump cover

6. The shaft sealing components

7. Intermediate support

8. Shaft

9. Suspension assembly

Features:

Extensive use: it is suitable to different kinds of refrigeration system. Specially, it can satisfy the pressure requirements of water supply system for high building. It is also suitable for the water supply and drainage system of factory, mine, city, power station and water conservancy.

Good versatility

Convenient disassembly: the pump casing and cover are separated from the back of impeller. So it is easy to overhaul. When maintenance, it is no need to move the inlet and outlet, you can just take away the coupling, move the motor, and then you can take out the impeller and other parts to check.

Long service life: it adopts precision investment casting impeller, thin oil lubrication, labyrinth seal without touch and wearing, which effectively protect the shaft. The pump casing and cover need 1.5 multiple of work pressure test before leave factory, so that it can improve the operational reliability of the pump.

Reasonable flow rate: equipped diffusion tube on the outlet of pump, the flow velocity of inlet and out is less than 3m/s, which reduce the loss of pipeline.

IS mode spectrogram:

Some Models:

Paragon Industrial Corporation is established in 2007, which is located in Hangzhou, Zhejiang China. It is an enterprise consist of paragon industrial Corp., Hangzhou JoHo Imp &Exp Co.Ltd ,Hangzhou Zhenxing pumps factory and Hangzhou Sixin pumps manufactory. The company is mainly engaged in developing and producing non clog centrifugal pump, paper and pulp pumps, refiner, agitator, vacuum pump, chemical pump and so on.

Our pumps are the revised model of Anderitz, So they are good at efficiency, energy-saving, low noise and environmental protection, They are exported to Southeast Asia, like Indonesia and Singapore for more than 8 years.

Our target markets are paper and pulp making industry and chemical processing industrial . Paragon has experienced engineers who can provide the users optimal solutions based on the practical situation.

We also provide Clients with many services, such as complete equipments , installing, maintenance and mountings. We guarantee the Clients with competitive products, timely delivery and satisfied service.
