Pumping Hot Water Non Clog Centrifugal Pump With Wear-Resisting
Stainless Steel
Description:

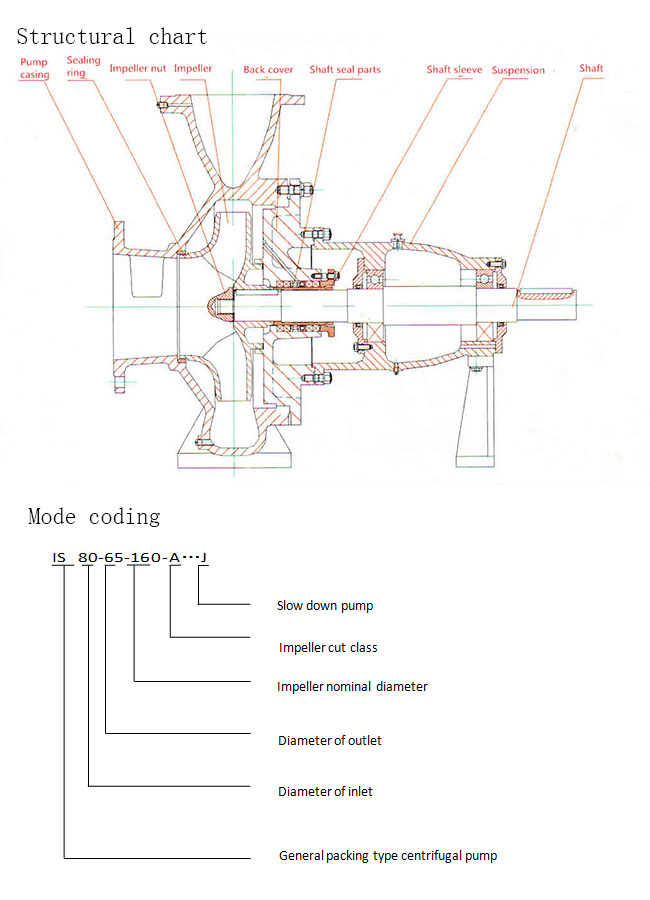

The hot water pump adopts overhung structure. The performance and
dimension of IS series pump are designed according IS2858. The main
components are pump casing, pump cover, impeller, shaft, seal ring,
shaft sleeve and bracket. ISB pump contains pump casing, pump
cover, impeller, shaft, seal ring, mechanical seal and bearing. ISR
pump is similar with IS pump. ISR pump just equips water cooling
chamber on the pump cover which can cool the grand, shaft and
prevent the heat transfer.
Features:
1. Reasonable flow rate: equipped diffusion tube on the outlet of
pump, the flow velocity of inlet and out is less than 3m/s, which
reduce the loss of pipeline.
2. Extensive use: it is suitable to different kinds of
refrigeration system. Specially, it can satisfy the pressure
requirements of water supply system for high building. It is also
suitable for the water supply and drainage system of factory, mine,
city, power station and water conservancy.
3. Long service life: it adopts precision investment casting
impeller, thin oil lubrication, labyrinth seal without touch and
wearing, which effectively protect the shaft. The pump casing and
cover need 1.5 multiple of work pressure test before leave factory,
so that it can improve the operational reliability of the pump.
4. Good versatility
Application:
It is specially used for the city water supply, the sewage and
effluent treatment, chemicals, iron & steel industries and the
paper, sugar & canned food industries. Industrial sewage of light
industry, paper mill, textile, food processing plant, chemical
industry, electric utility, deep mines, etc.
